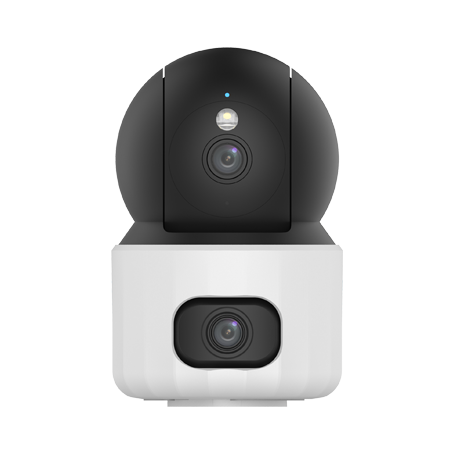

Uho-S3S-M33D Camera IP WIFI PTZ DUAL LENS 3MP+3MP UNIARCH
Caméra IP PTZ INTERNE 3MP DUAL LENS WIFI
- Intégration de caméras fixes et PT, double canal avec une seule adresse IP, pour une vision globale et détaillée.
- Ultra 265, H.265, H.264
- Prise en charge de la fonction WDR (Wide Dynamic Range) numérique
- Microphone et haut-parleur intégrés, audio bidirectionnel, pour une meilleure interaction
- Alertes sonores et lumineuses, pour une meilleure visibilité des alertes et des alarmes
- Smart IR, jusqu'à 10 m (33 pi) de portée IR et 10 m (33 pi) de lumière chaude, pour un plus grand nombre de scènes
- Éclairage IR et lumière chaude pour une gestion optimale des scènes et un éclairage couleur optimal
+ Carte Mémoire Gratuite 32GB
Tous nos produits sont originaux et soumis à une garantie
Livraison rapide pour toute la Tunisie et gratuite à partir de 300DT
assistance technique 7/7
| Uho-S3S-M33D | ||||||
| Camera | Panorama | Detail | ||||
| Sensor | 1/2.8" progressive scan, 3.0 megapixel, CMOS | 1/2.8" progressive scan, 3.0 megapixel, CMOS | ||||
| Min. Illumination | Colour:0.01 lux (F2.0,AGC ON) 0 lux with IR |
Colour:0.01 lux (F2.0,AGC ON) 0 lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1s ~ 1/100000s | |||||
| WDR | DWDR | |||||
| S/N | >52dB | |||||
| Lens | ||||||
| Lens type | 4.0mm@F2.0 | 4.0mm@F2.0 | ||||
| Digital Zoom | N/A | 4X | ||||
| Iris | Fixed | Fixed | ||||
| Field of View (H) | 91.5° | 91.5° | ||||
| Field of View (V) | 48.1° | 48.1° | ||||
| Field of View (D) | 96.3° | 96.3° | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4.0 mm | 73.5 (241.0ft) | 29.4 (96.4ft) | 14.7 (48.2ft) | 7.3(24.1ft) | ||
| 4.0 mm | 73.5 (241.0ft) | 29.4 (96.4ft) | 14.7 (48.2ft) | 7.3(24.1ft) | ||
| Illuminator | ||||||
| IR Range | Up to 10m (33ft) | Up to 10m (33ft) | ||||
| Warm Light Range | N/A | Up to 10m (33ft) | ||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264 | |||||
| Frame Rate | Main Stream: 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps; Sub Stream: 640*360,Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps; |
Main Stream: 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps; Sub Stream: 640*360,Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps; |
||||
| Video Bit Rate | 128 Kbps~2048 Kbps | |||||
| ROI | Up to 8 areas | |||||
| Video Stream | Dual streams | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Support(Only NVR) | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| HLC | N/A | |||||
| BLC | N/A | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Motion detection, Ultra motion detection(pedestrian/motor vehicle/pet), Loud Sound Detection, Crying detection, Tampering alarm | |||||
| Auto tracking | N/A | Support | ||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U,G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 512 GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna | |||||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | |||||
| Compatible Integration | API | |||||
| Client | Uniarch Client Uniarch APP |
|||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Wi-Fi | ||||||
| Wireless Standards | IEEE802.11b/g/n/ax | |||||
| Frequency Range | 2.4GHz~2.4835GHz | |||||
| Channel Bandwidth | 20/40 MHz Support | |||||
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA |
|||||
| Security | 64/128-bitWEP,WPA-PSK/WPA2-PSK | |||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 16±1.5dBm @ 54Mbps 802.11n: 16±1.5dBm @MCS7 802.11ax: 16±1.5dBm @MCS9 |
|||||
| Receive Sensitivity | 802.11b: -76dBm @11Mbps (Typical) 802.11g: -65dBm @54Mbps (Typical) 802.11n: -61dBm @MCS7,HT40(Typical) 802.11ax: -54dBm @MCS9,HE40(Typical) |
|||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps 802.11ax: up to 270Mbps |
|||||
| Pan & Tilt | ||||||
| Pan Range | N/A | 0° ~ 355° | ||||
| Pan Speed | N/A | 17°/s ~ 50°/s | ||||
| Preset speed: N/A | Preset speed: 50°/s | |||||
| Tilt Range | 0° ~ 15° | -15° ~ 90° | ||||
| Tilt Speed | N/A | 17°/s ~ 50°/s | ||||
| Preset speed: N/A | Preset speed: 50°/s | |||||
| Number of Presets | 20 | |||||
| Interface | ||||||
| Built-in Mic | Support | |||||
| Built-in Speaker | Support | |||||
| Wi-Fi | Support | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
|||||
| Safety | CE LVD (EN 62368-1) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||
| General | ||||||
| Power | DC 5V/1.5A | |||||
| USB type-C interface | ||||||
| Dimensions (Ø x H) | Φ80 x 127mm (Ø3.1” x 4.8”) | |||||
| Weight | 0.22kg(0.49lb) | |||||
| Working Environment | -10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | N/A | |||||
| Reset Button | Support | |||||
| LED indicator | 1, red/blue | |||||
Uho-S3S-M33D
